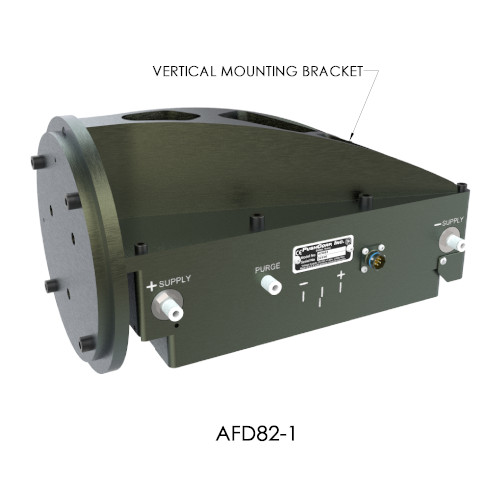

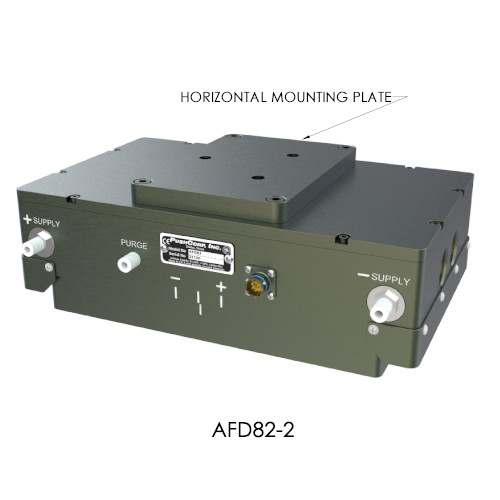

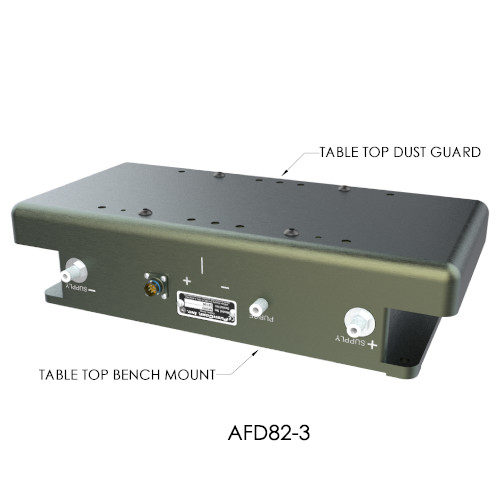

The AFD82 is part of PushCorp’s Passive Compliance series. This end effector can apply up to 115 lbf [511 N] in any orientation. Unlike the active series, this equipment relies on an external air pressure regulator to set the applied force. This pressure must change when a new orientation is programmed in order to maintain a constant force. For this reason, the AFD82 is most commonly used for robotic, material-removal applications with flat or prismatic parts.

The STC0612-BT40, SM0612, STC1015, and STC1515 are servo spindles optimized to mount to the AFD82. For weld shaving applications, our SWS100-3.7 or SWS100-7.2 would also be excellent pairings. Together, these products can automate a wide variety of robotic processes:

Automated Grinding
Automated Sanding
Automated Polishing
Automated Deburring
Automated Weld Shaving

If the application will have impact loading, interrupted cuts, or require a heavier spindle, our AFD92 is the largest in the series. It features an even more robust set of linear bearings and can apply 250 lbf [1112 N].
