The RPS100 is available with the following orbits: 3/8″, 3/16″, or 3/32″. The 3/8″ orbit will allow for the most aggressive sanding while the 3/32″ orbit is better suited for applications where a fine finish is required. Additionally, either a 3″, 3½”, 5″, or 6″ backing pad may be used. Reference the Drop In Motors chart below to select the unit that best fits.

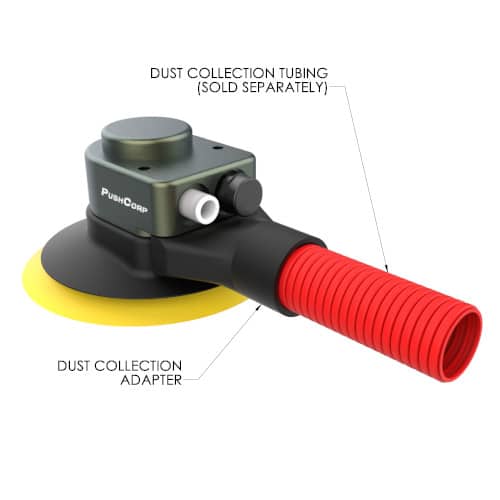

The RPS100 has the option to be used with or without a dust collection system. The dust shield and adapter come standard with each RPS100. This can be used with dust collection tubing purchased separately from 3M.
CIRCULAR DISCS – DROP IN MOTORS
| Orbit Diameter | 1-1/4″ Disc | 3″ Disc | 5″ Disc | 6″ Disc |
|---|---|---|---|---|
| 3/8″ | N/A | N/A | ASM03247 | ASM03257 |
| 3/16″ | ASM03872 | ASM02907 | ASM02904 | ASM02910 |
| 3/32″ | N/A | ASM02908 | ASM03258 | ASM02911 |
RECTANGULAR PADS – DROP IN MOTORS
| Orbit Diameter | 3″ x 4″ Pad |
|---|---|
| 1/8″ | ASM03997 |
