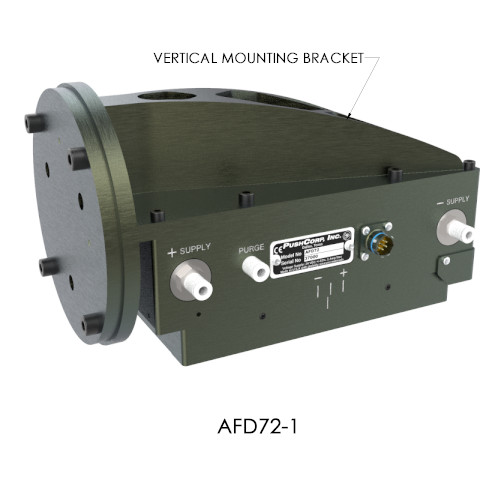

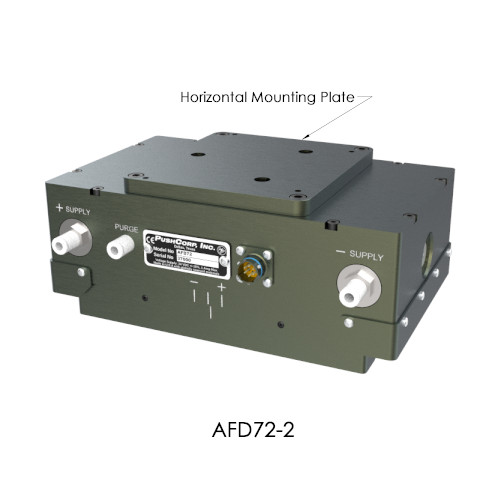

The AFD72 is part of PushCorp’s Passive Compliance series. This end effector can apply up to 60 lbf [267 N] in any orientation. Unlike the active series, this equipment relies on an external air pressure regulator to set the applied force. This pressure must change when a new orientation is programmed in order to maintain a constant force. For this reason, the AFD72 is most commonly used for robotic, material-removal applications with flat or prismatic parts.

The STC1503-BT30, SM1503, STC0605-BT30, and SM0605 are servo spindles optimized to mount to the AFD72. Together, they can automate a wide variety of robotic processes:

Robotic Grinding
Robotic Sanding
Robotic Polishing
Robotic Deburring
Robotic Deflashing
If the application will have impact loading, interrupted cuts, or require a heavier spindle, our AFD82 is the second largest in the series. It features a more robust set of linear bearings and can apply 100 lbf [444 N].
