Pick parts at one spacing and place them at another in a single motion. Stroke and speed are set through your PLC — from two stations up to 5,000 mm of travel, with full custom engineering for parts that don’t fit a standard model.
What a variable-pitch module does

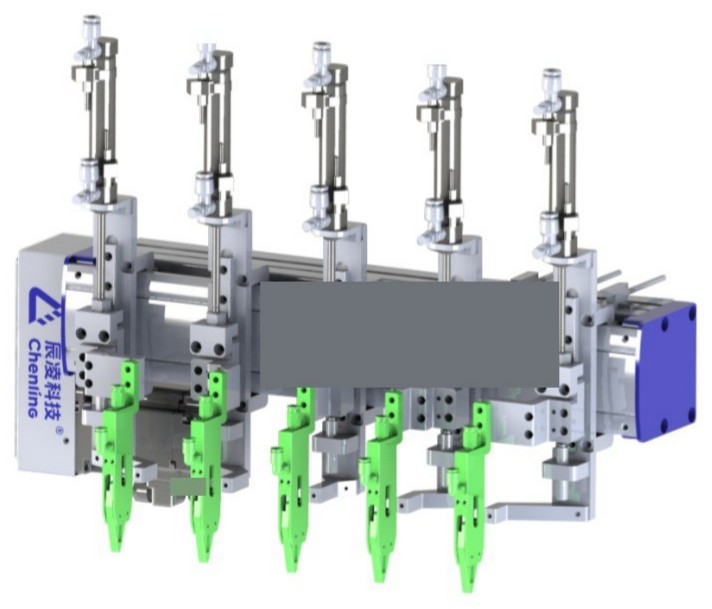

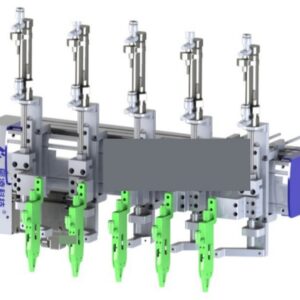

The module mounts at the end of a robot, manipulator or linear axis and works together with grippers, suction cups or electromagnets. It changes the spacing between parts between the pick and the place — raising throughput and taking manual handling out of the loop.
01
Mount at the end of the arm
Fits a robot, manipulator or linear module, and carries grippers, vacuum cups or electromagnets as the working tool.
02
Set parameters in the PLC
Pitch-change stroke, pitch-change speed and related parameters are configured through the PLC control system.
03
Command on demand
When a pitch-change pick-and-place is required, the PLC sends the command and the module moves to the set parameters.
04
Pick and place
The module drives the tooling to pick parts from the tray at a fixed pitch, then places them at the changed pitch in the target position.
05
Adjust throughout the cycle
Stroke and speed stay adjustable to suit different part spacings and changing production requirements.
Six variable-pitch series
Choose by how the pitch has to change — equal spacing across every station, unequal spacing, fully independent stations, pneumatic two-point travel, scissor-lift for long spans, or synchronous adjustment on two axes.
CLD
equal-Pitch Variable-Pitch Module
- Workstations stay equally spaced across the whole run
- Steplessly adjustable pitch
- Models 18 · 40 · 60 · 60F · 80 · 80F · 80S · 100 · 130F · 175F · 230F
- Max length ≤ 5,000 mm
- Load / station 2.5 – 60 kg
CLB
Unequal-Pitch Variable-Pitch Module
- Inter-station distance can be set equal or unequal
- Steplessly adjustable pitch
- Models 18 · 40 · 60 · 60F · 80 · 80F · 80S · 100 · 130F · 175F · 230F
- Max length ≤ 5,000 mm
- Load / station 2.5 – 60 kg
CLZ
Free-Pitch Variable-Pitch Module
- Every station is controlled independently — spacing set at will
- Pre-programmed; no additional coding required
- Models 42-St · 57-St · SM
- Max length ≤ 5,000 mm
CLQ
Pneumatic Variable-Pitch Module
- Two-point pitch change
- Simple control — no servo or drive needed
- Models 60 · 80 · 120 · 200
- Max length ≤ 1,500 mm
CLJ
Scissor-Lift Variable-Pitch Module
- Unlimited main body length — up to 10,000 mm
- Higher load capacity than conventional structures
- Models 80 · 170 · 290 · 350
- Max length ≤ 10,000 mm
- Motor 400 – 1,000 W
CLX

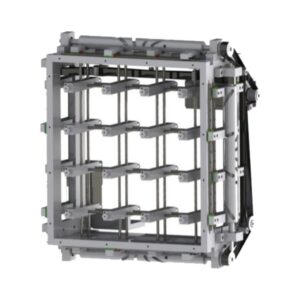

3D / Dual-Axis Variable-Pitch Module
- Synchronous XY pitch adjustment
- Bi-directional and stepless pitch adjustment
- Models CLXT · CLXM · CLXW
- Min spacing ≥ 14 mm
- Working area X ≤ 3,000 × Y ≤ 5,000 mm
MULTI
Multi-Functional Variable-Pitch Module
- Workstation pitch can be adjusted selectively in groups
- Stations move as a whole or in groups for greater flexibility
- Key feature Group-selective pitch change
- Sizing Custom-engineered
No standard model fits your part?
Our engineering team designs complete modules around the part — wafer handling, rotate-and-flip stations, scissor-lift bodies with an independent Z axis. You get 3D files to review before anything is manufactured.
Discuss with our engineers to get started with a demo, application review, or expert consultation.
