Remote-Adjust Option

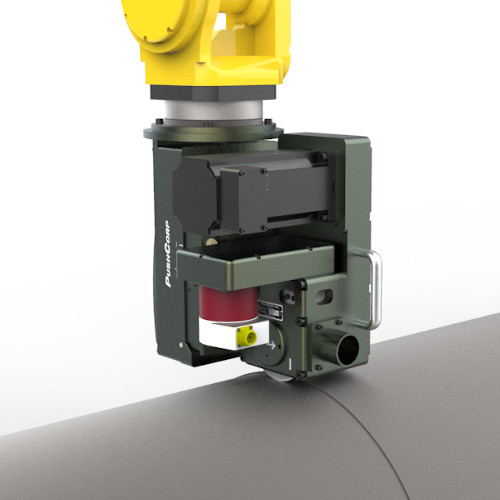

The SWS100-3.7 may be ordered with a Remote-Adjust option. This allows the depth of cut to be adjusted, automatically, without stopping the weld-shaving process. The Remote-Adjust uses a lead screw driven by a stepper motor to precisely lift or lower the Guide Wheels of the SWS100-3.7.
Adjustment Resolution: 0.0003 in./step (0.008 mm/step)
Adjustment Range: -.1 inch/+.2 inch (-2.5 mm/+5 mm)
Features
- 4.8 Hp (3.6 kW) Servo Motor
- 0-3500 SFM
- Standard Slot Cutter and Replaceable Inserts
- Manual Adjustment from ±0.1 inch (±2.5 mm)
- Optional Remote Adjustment from -.1 inch/+.2 inch (-2.5 mm/+5 mm)
- All fittings, fasteners, and threaded holes are METRIC
SPECIFICATIONS
| Model | SWS100-3.7 Series |
| Power | 4.8 Hp (3.6 kW) |
| Continuous Torque | 11 lb.-ft. (14.7 N·m) |
| Maximum SFM | 3500 SFM |
| Supply Voltage | 320 VDC |
| Tool Weight | 55 lbs. (25 kg) |
| Diameter | 4.9 in [125 mm] |
| Number of Inserts | 8 |
| Cutter Insert Type | Sandvik, CoroMill 331 (Inserts Not Included) |

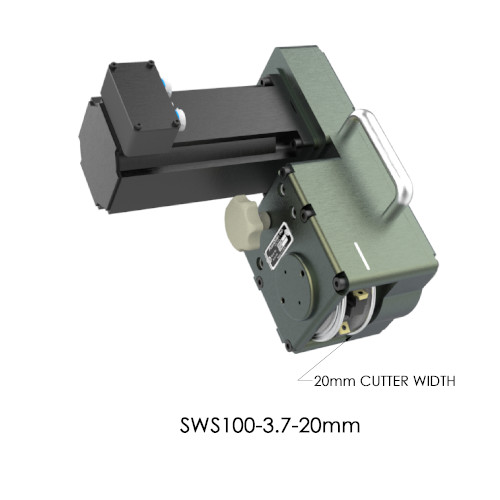

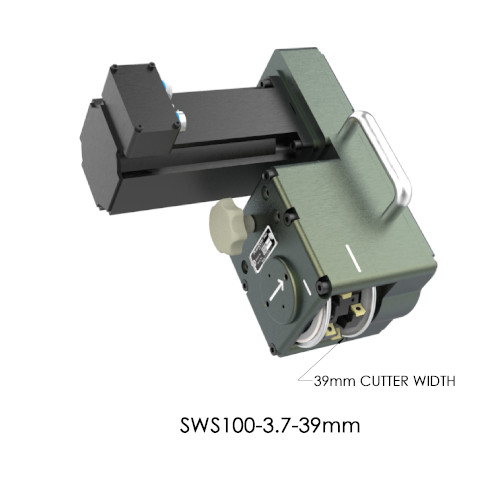

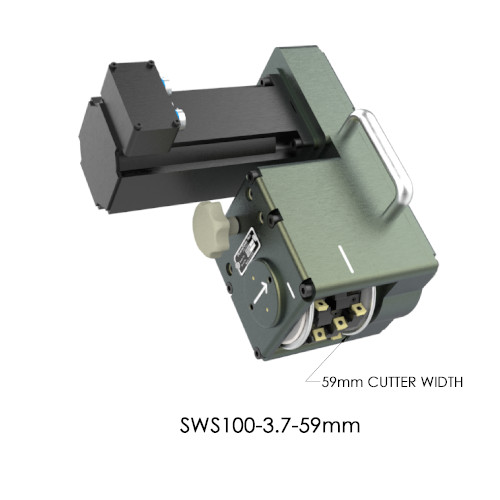

| Cutting Width | 0.78 in. – 2.32 in. (20 – 59 mm) |
