Elfin-Pro Collaborative Robots E03-Pro

Elfin-Pro Collaborative Robots E03-Pro

Elfin-PRO Collaborative Robot: It developed based on the Elfin collaborative robot, retaining its core strengths while enhancing its capabilities by integrating technology and end-force control.

Enhanced Capabilities and Integration: It not only has all the advantages of the Elfin collaborative robot, such as a variety of models, easy deployment, high precision, high flexibility, double-joint module design and modular design but it also has upgraded the product capability through the integration of technology, End-force control integration, end vision integration.

Improved Surface Treatment Process: It adopts a new, elegant, practical surface treatment process that is more stable and reliable. With all these advantages, the Elfin PRO collaborative robot system offers a better human-robot collaboration experience and can support broader application scenarios.

Add to wishlist
Add to wishlist
หมวดหมู่: รหัสสินค้า: E03-Pro ป้ายกำกับ: แบรนด์:

คำอธิบาย















Type E03-Pro
18kg
3kg
590mm
100W Typical Application
Joint Range J1/4/6 ±360°
J2 ±135°
J3 ±150°J5 ±147°
Joint Speed J1-J4 180°/s
J5-J6 200°/s
Maximum Tool Speed

(Effective payload status)

2m/s
Repeatability

(Effective payload, rated speed status)

±0.02mm
Degree Of Freedom 6
END I/O Port Digital Input:3, Digital Output:3, Analog Input:2
Control Box I/O Port Digital Input:16, Digital Output:16, Analog Input:2, Analog Output:2
I/O Source 24V 2A
Communication TCP/IP , ModbusTCP ,Profinet(Optional), Ethernet/IP(Optional)
Programming Graphical Programming, Remote Call Interface
IP Classification IP66
Collaborative Operation 10 Advanced Security Configuration Functions
Main Material Aluminum Alloy
Working Temperature 0-50℃
Power Input 100-240V AC, 50-60Hz
Cable Cable To The Control Cabinet: 5m, Cable To The Teach Pendant: 5m

Standard control box

Compatible Models
E03-Pro,E05-Pro,E05L-Pro,E10-Pro,E10L-Pro(1KW), E12-Pro,E15-Pro(2KW)
Dimensions
445.2mm x 237mm x (330+90)mm
Stand Height
90mm
Weight
18.3KG(1KW) / 17.5KG(2KW)
Power Output
48V DC
Working Temperature
0~50℃
Working Humidity 90% Relative Humidity (non-condensing)
IP Classification
IP20
Communication Frequency
1000Hz

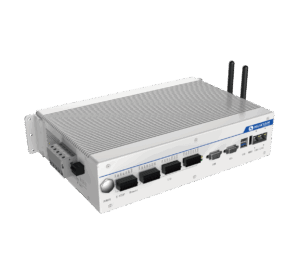

Mini control box

Dimensions
387 x 246 x 85 mm
Power Input
DC30~60V
I/O Source DC24V
I/O Port Inputs 8, Outputs 8
IP Classification IP20
Communication TCP/IP Modbus



Teach Pendant

Dimensions 290x234x108(mm)
Weight 2.5kg
Display 11″
Resolution 1920 x 1200
E-stop Button 1

ข้อมูลเพิ่มเติม

น้ำหนัก 18 กก.
Color

White
