Name: S Heavy Payload Robot S50
Brand: Cobot
SKU: SHPRS50
Availability: InStock

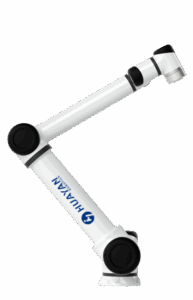

S Heavy Payload Robot S50

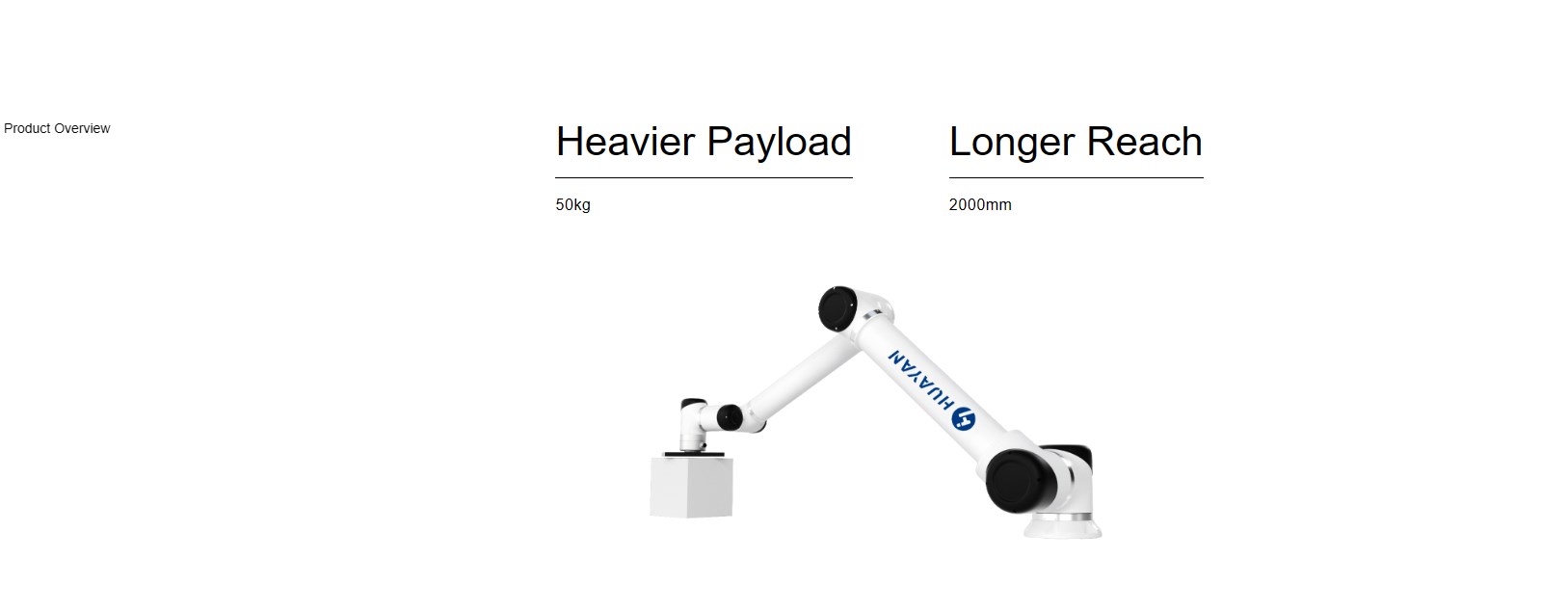

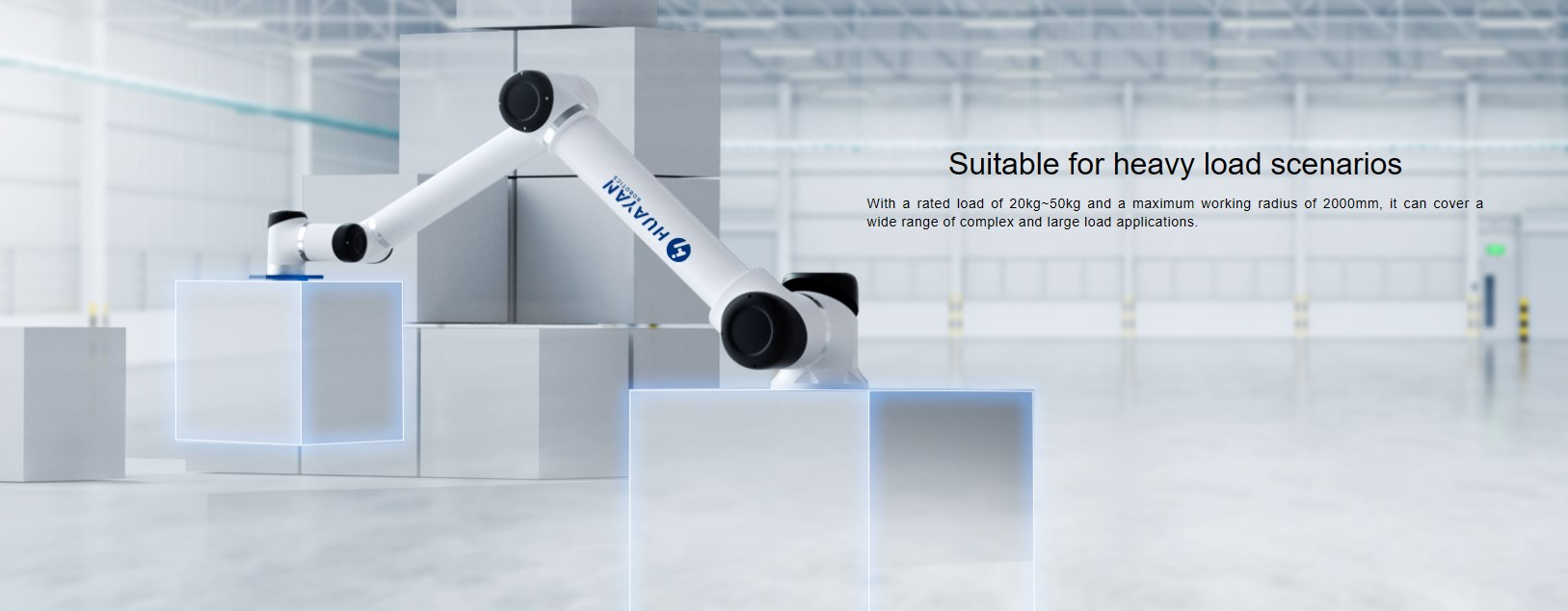

S Heavy Payload Robot with high payloads and long arm reach, which can easily handle a super heavy 50KG payload and 1700mm~2000mm working radius.It can be widely used in machine loading and unloading, palletizing, assembly and heavy load handling applications. Huayan Robotics S heavy payload robot is a great tool for users to improve their productivity comprehensively, with a qualitative leap in product performance, safety protection, response time and anti-interference capability.

หมวดหมู่: Cobot รหัสสินค้า: SHPRS50 ป้ายกำกับ: cobot Collaborative Robot แบรนด์: Cobot

คำอธิบาย


Model	S50
Weight	165kg
Payload3	50kg
Reach	2000mm
Joint Range	J1/2/6/4/5/6 ±360°
Joint Speed	J1 244°/s J2 150°/s J3 120°/s J4-J6 180°/s
Maximum Tool Speed (Effective payload status)	8.5 m/s
Repeatability (Effective payload, rated speed status)	±0.01 mm
Degree of freedom	6
End I/O Port	Digital input：3 Digital output：3 Analogue input：2
Control box I/O Port	Digital input：16 Digital onput：16 Analogue input：2 Analogue output：2
I/O Source	24V 2A
Communication	TCP/IP ，Modbus

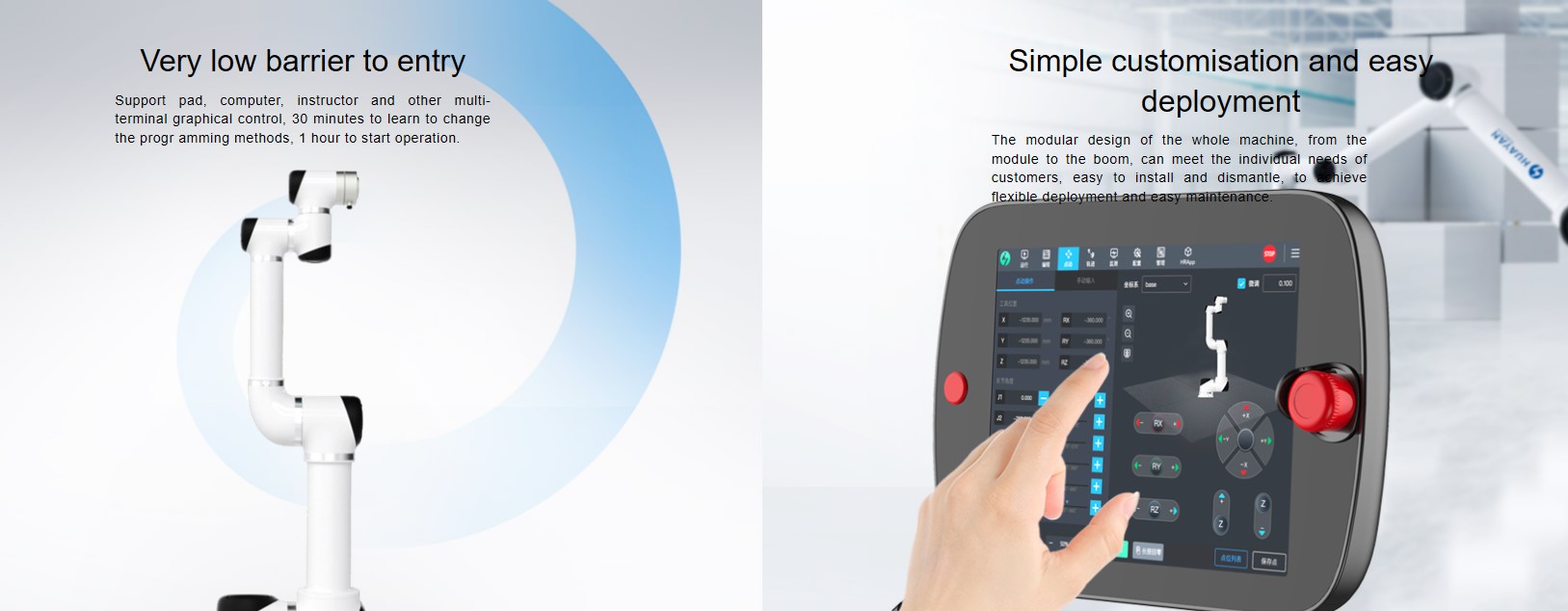

Programming	Graphical Programming, remote call interface
IP Classification	IP54
Main Material	Aluminum Alloy
Working Temperature	0-45℃
Power Input	200-240V AC, 50-60Hz

Standard control box
Compatible Models	S20(2KW) / S30,S35(3KW)
Dimensions	445.2mm x 237mm x (330+90)mm
Stand Height	90mm
Weight	18.3KG(1KW) / 17.5KG(2KW)
Power Output	48V DC
Working Temperature	0~50℃
Working Humidity	90% Relative Humidity (non-condensing)
IP Classification	IP20
Communication Frequency	1000Hz
