Name: Elfin Collaborative Robot E03
Brand: Cobot
SKU: ECB03
Availability: InStock

Elfin Collaborative Robot E03

Elfin Collaborative Robot E03

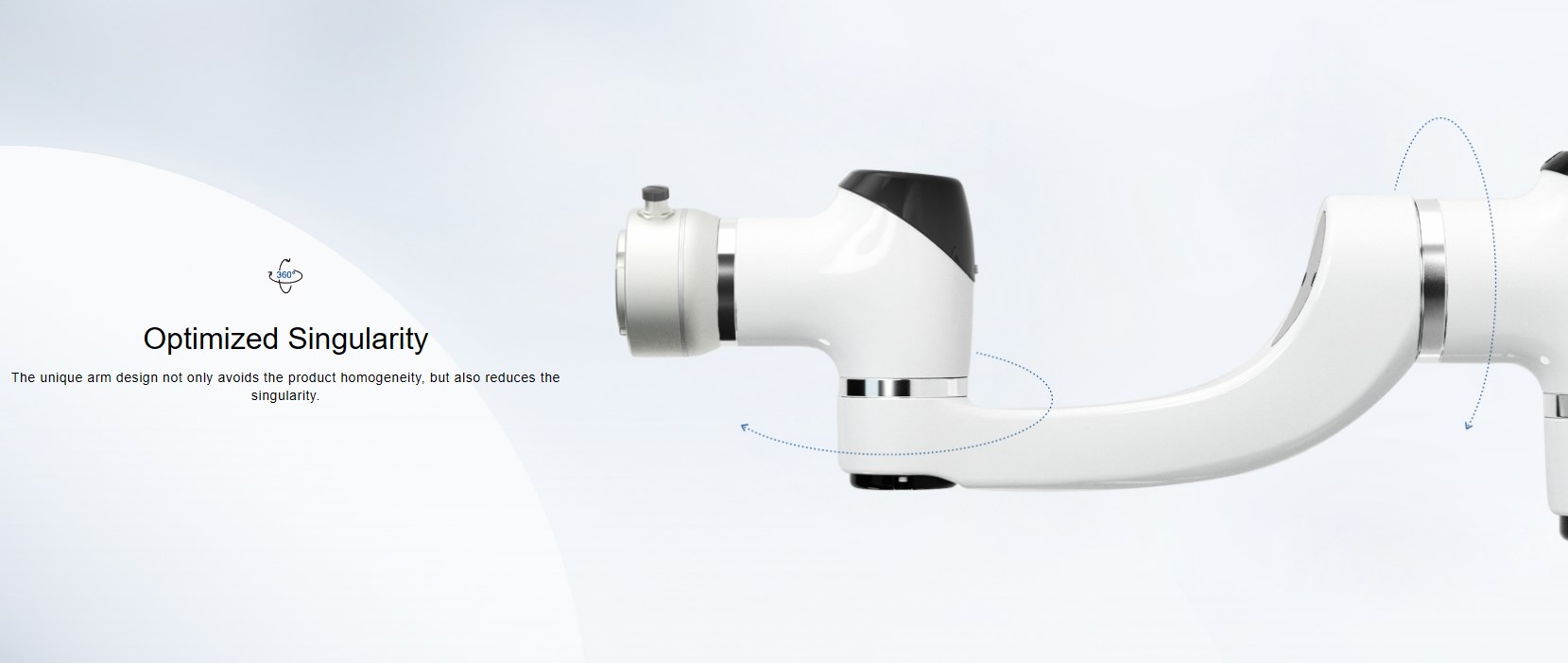

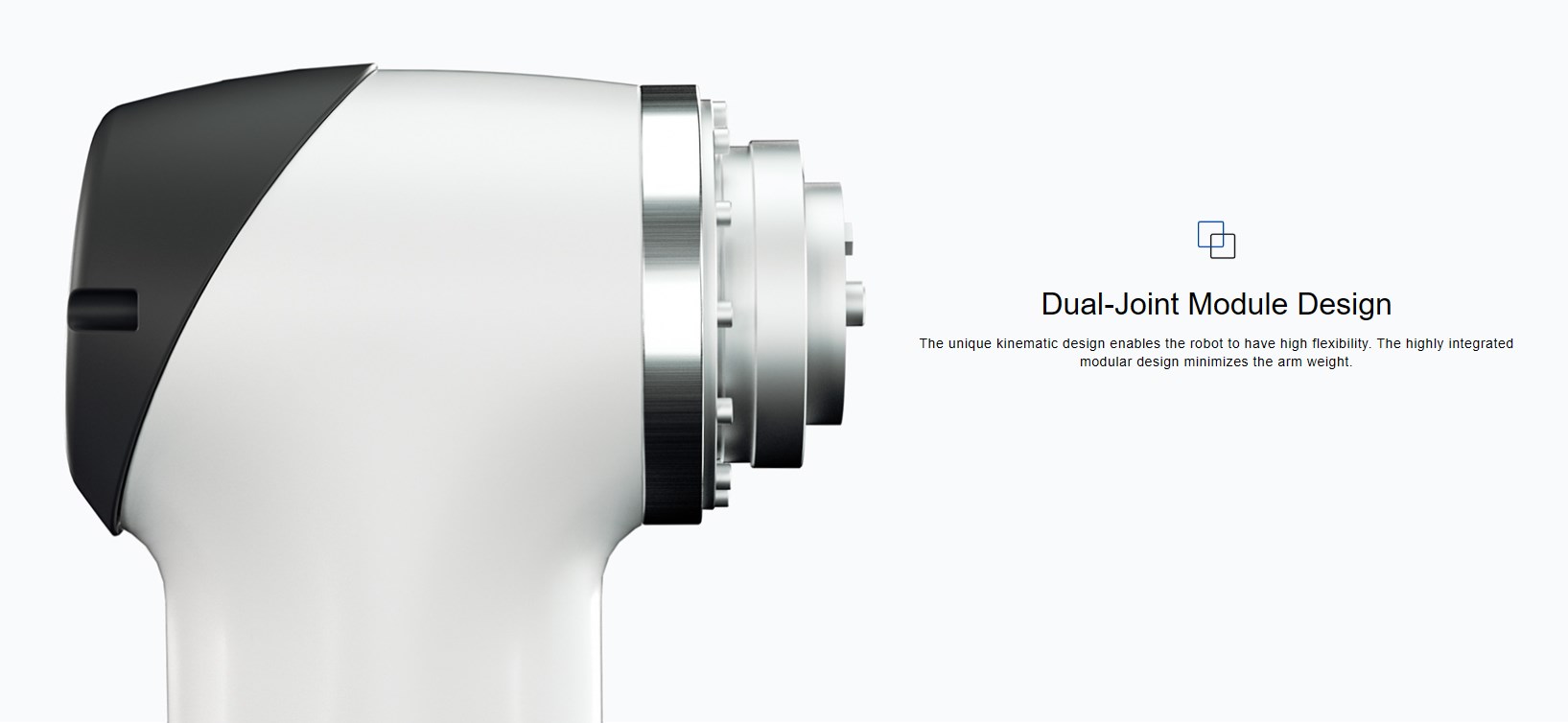

Elfin 6-axis collaborative robot is designed for a wide range of industrial applications. This cobot can be utilized in automated, integrated production lines, assembly, picking, welding, grinding, spraying, and various other applications. It has been exported to over 100 countries and regions.It adopts a unique double-joint module design, where one motion module contains two joints to form a unique kinematic structure. This design differs from most collaborative robotic arms on the market and provides more flexibility when working.

หมวดหมู่: Cobot รหัสสินค้า: ECB03 แบรนด์: Cobot

คำอธิบาย


Model	E03
Weight	18kg
Payload	3kg
Reach	590mm
Power Consumption	100W Typical Application
Joint Range	J1/4/6 ±360° J2 ±135° J3 ±150°J5 ±147°
Joint Speed	J1-J4 180°/S J5-J6 200°/S
Maximum Tool Speed (Effective payload status)	2m/s
Repeatability (Effective payload, rated speed status)	±0.02mm
Degree Of Freedom	6
END I/O Port	Digital Input：3，Digital Output：3，Analog Input:2
Control Box I/O Port	Digital Input:16, Digital Output:16, Analog Input:2, Analog Output:2
I/O Source	24V 2A
Communication	TCP/IP，ModbusTCP , Profinet（Optional）， Ethernet/IP（Optional）
Programming	Graphical Programming, Remote Call Interface
IP Classification	IP54/IP66（Optional）
Collaborative Operation	10 Advanced Security Configuration Functions
Main Material	Aluminum Alloy
Working Temperature	0-50℃
Power Input	200-240V AC(Optional 110-240V AV),50-60Hz

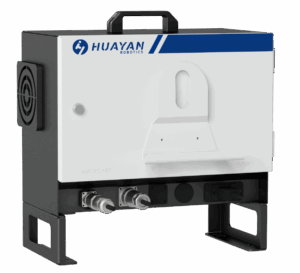

Standard control box
Compatible Models	E03,E05,E05-L,E10,E10-L(1KW) / E12,E15(2KW)
Dimensions	445.2mm x 237mm x (330+90)mm
Stand Height	90mm
Weight	18.3KG(1KW) / 17.5KG(2KW)
Power Output	48V DC
Working Temperature	0~50℃
Working Humidity	90% Relative Humidity (non-condensing)
IP Classification	IP20
