SWS100-7.2 Series

Servo Weld Shaver

Name: SWS100-7.2 Series
Brand: PushCorp
SKU: SWS100-7.2 Series
Availability: InStock

The PushCorp SWS100-7.2 Servo Weld Shaver has the power and capability to transform a largely varying profile into a consistent, predetermined surface slightly above or below the surrounding parent metal. The SWS100-7.2 is ready to take on ferrous metal, including cast iron, carbon steel, and stainless steel. This unit excels at removing weld beads and casting parting lines.

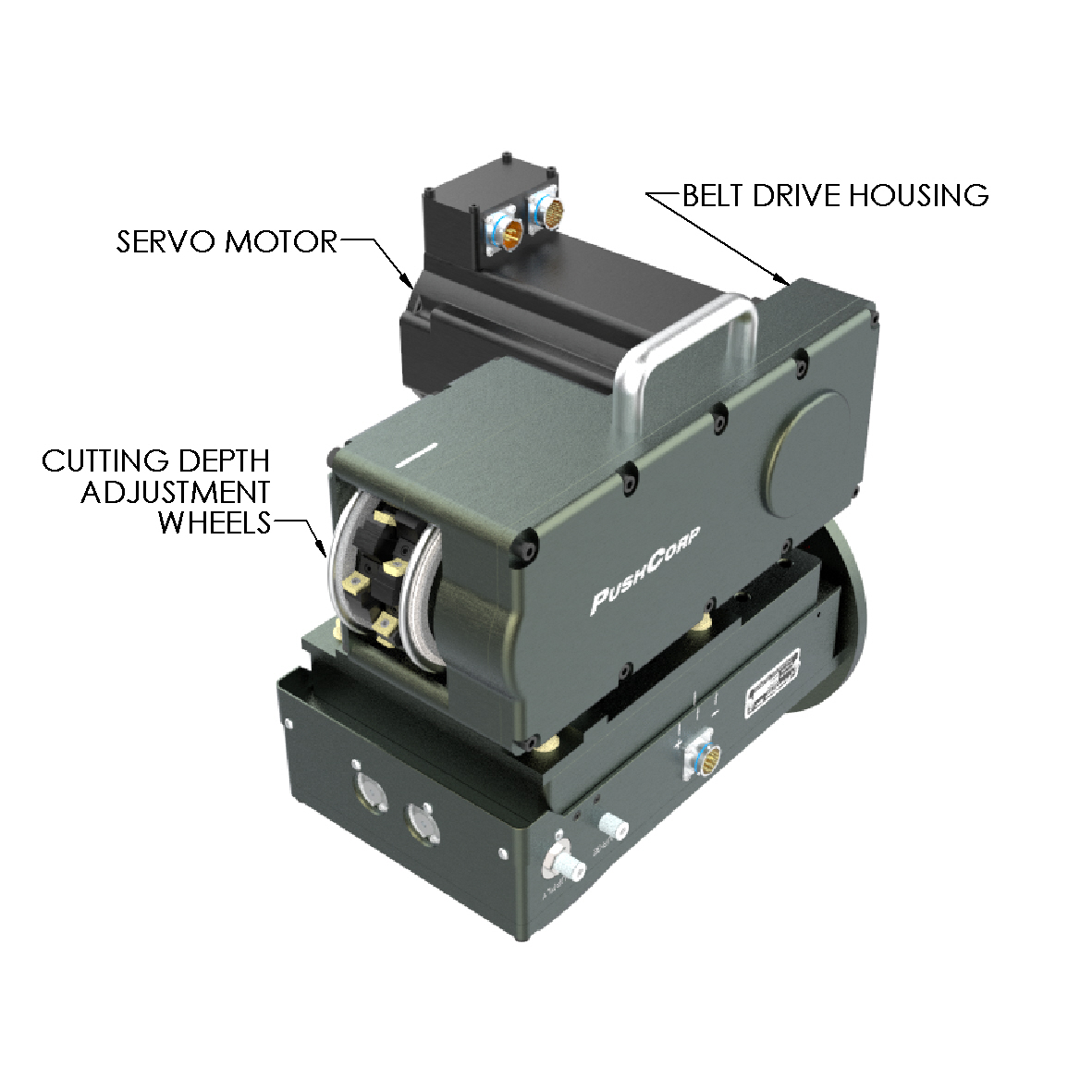

The SWS100-7.2 Servo Weld Shaver uses a six inch diameter slotting cutter positioned by adjustable, rolling guide wheels. The guide wheels can be manually adjusted and set or, with the auto-adjust option, varied automatically during the weld-shaving process. This allows the cutter to machine away the exact amount of material desired. The twelve replaceable, carbide cutter inserts ensure a consistent, smooth cut and long life. Easy access to the inserts allows them to be changed in a matter of minutes.

คำอธิบาย

Remote-Adjust Option

The SWS100-7.2 may be ordered with a Remote-Adjust option. This allows the depth of cut to be adjusted, automatically, without stopping the weld-shaving process. The Remote-Adjust uses a lead screw driven by a stepper motor to precisely lift or lower the Guide Wheels of the SWS100-7.2.

Adjustment Resolution: 0.0003 in./step (0.008 mm/step)
Adjustment Range: -.1 inch/+.2 inch (-2.5 mm/+5 mm)

Weld Shaver Features

6.7 Hp (5 kW) Servo Motor
0-2500 SFM
Standard Slot Cutter and Replaceable Inserts
Manual Adjustment from ±0.1 inch (±2.5 mm)
Optional Remote Adjustment from -.1 inch/+.2 inch (-2.5 mm/+5 mm)
All fittings, fasteners, and threaded holes are METRIC

SPECIFICATIONS

Model	SWS100-7.2 Series
Power	6.7 Hp (5 kW)
Continuous Torque	18.5 lb.-ft. (25 N·m)
Maximum SFM	2500 SFM
Supply Voltage	560 VDC
Tool Weight	55 lbs. (25 kg)
Diameter	4.9 in [125mm]
Number of Inserts	8
Cutter Insert Type	Sandvik, CoroMill 331 (Inserts Not Included)

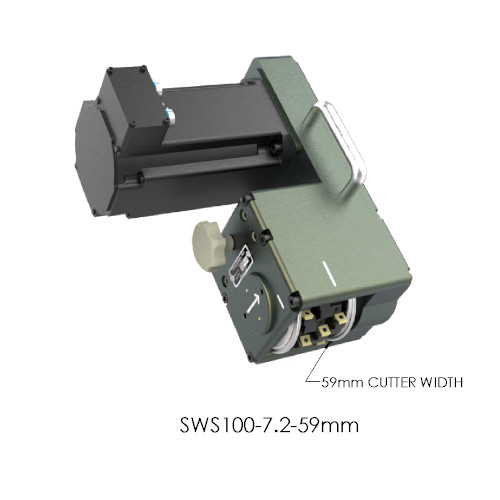

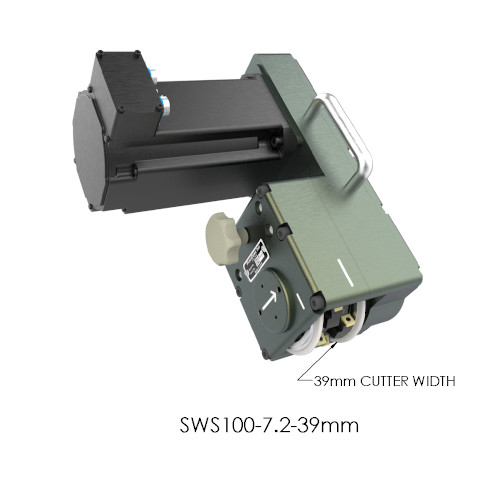

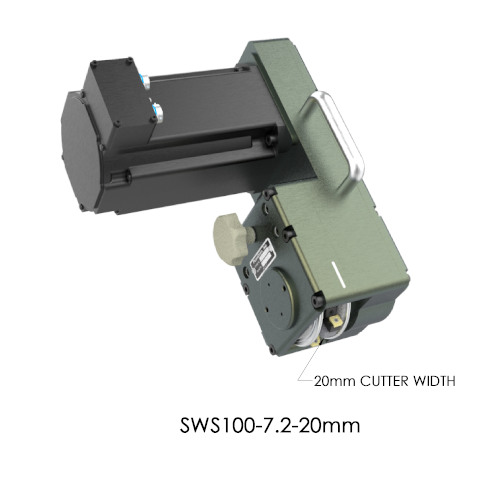

Cutting Width	0.78 in. – 2.32 in. (20 – 59 mm)
