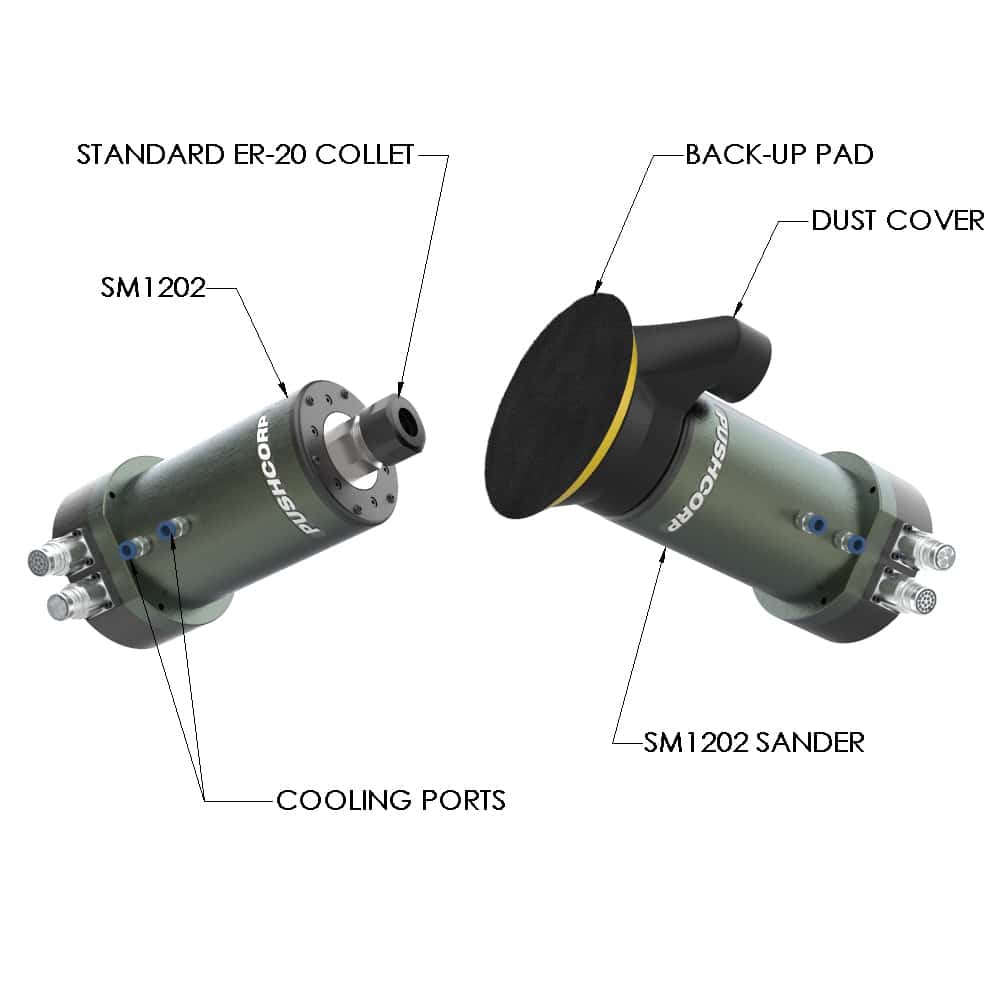

The “ER” Series features an ER20 collet, which is used to clamp the tool shaft. This means that operator intervention is required when the media needs to be replaced. For applications where the abrasive media or the tools have a long life, the manual collet is the ideal solution.

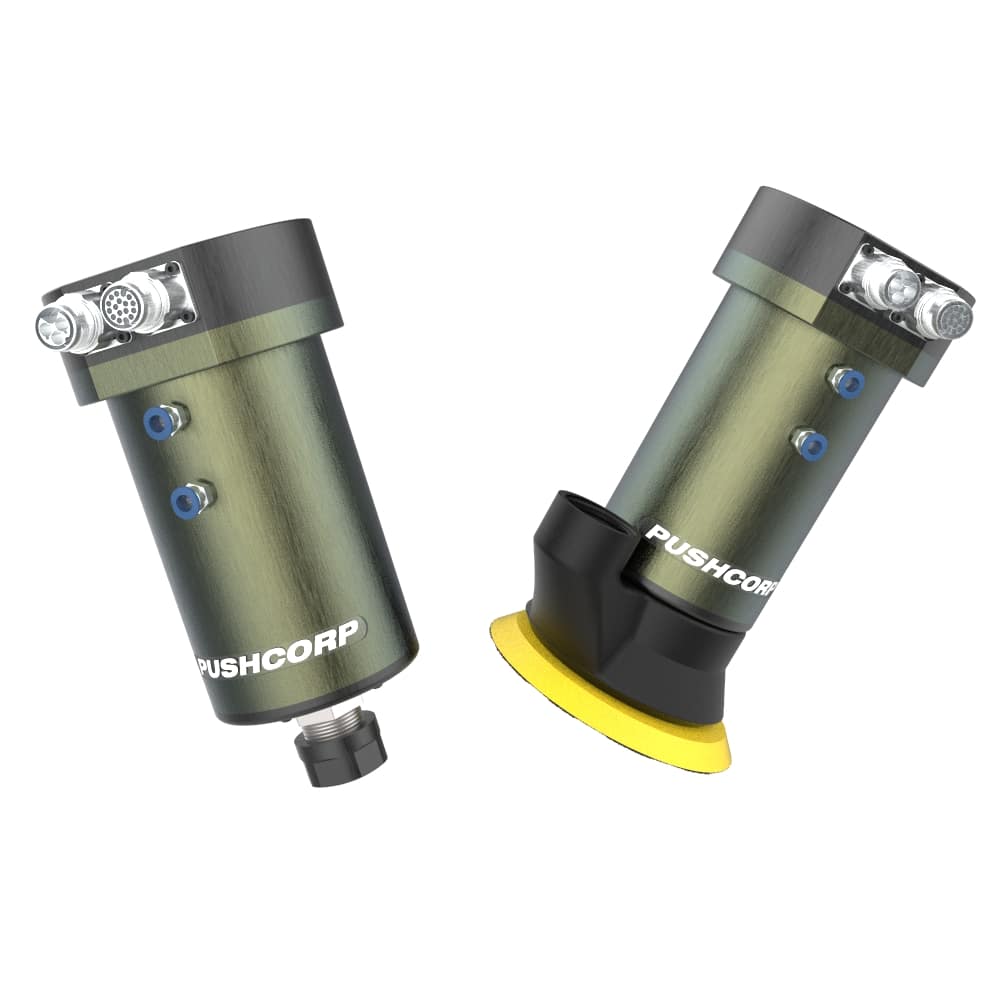

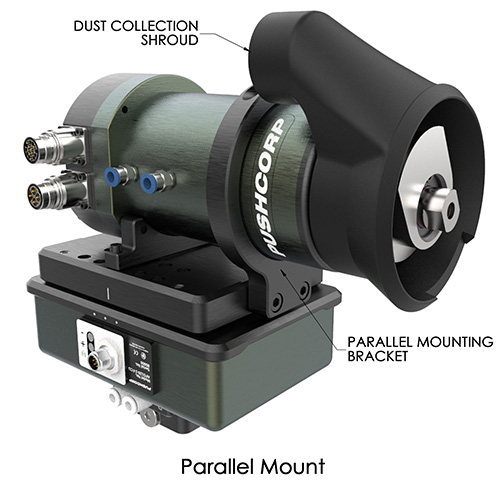

The SM1202 has been developed as a lighter, more compact alternative to the SM1503. It features a powerful 2.0 hp [1.49 kW] servo motor that provides constant speed. This equipment is designed to mount in a parallel or perpendicular orientation on the AFD310 and AFD72 force compliance devices. As a result, it has never been easier to program beautiful and consistent surface finishes.
Features
- Passive Force Control
- Servo motor amplifier included
- Contact wheel position output
- Accurate media speed control
- 1.4 in [36 mm] linear compliant stroke
- All fittings, fasteners, and threaded holes are METRIC
SPECIFICATIONS
| Model | SFS92 Series |
| Max Applied Force | 215 lbf [956 N] |
| Force Resolution | 2.6 lbs/psi [166 N/Bar] |
| Compliant Stroke | 1.4 in [36 mm] |
| Weight | 415 lbs [188.2 kg] |
| Supply Air | Dry, 5µm Filtered, Non-lubricated, 80 psi [5.5 Bar] max |
| Horsepower | 16.5 hp [12.3 kW] |
| Continuous Stall Torque | 62 lb· ft [84 N·m] |
| Output Shaft Speed | 0-1400 rpm (Reversible) |
