Tool changing ability
The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool.
All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools.

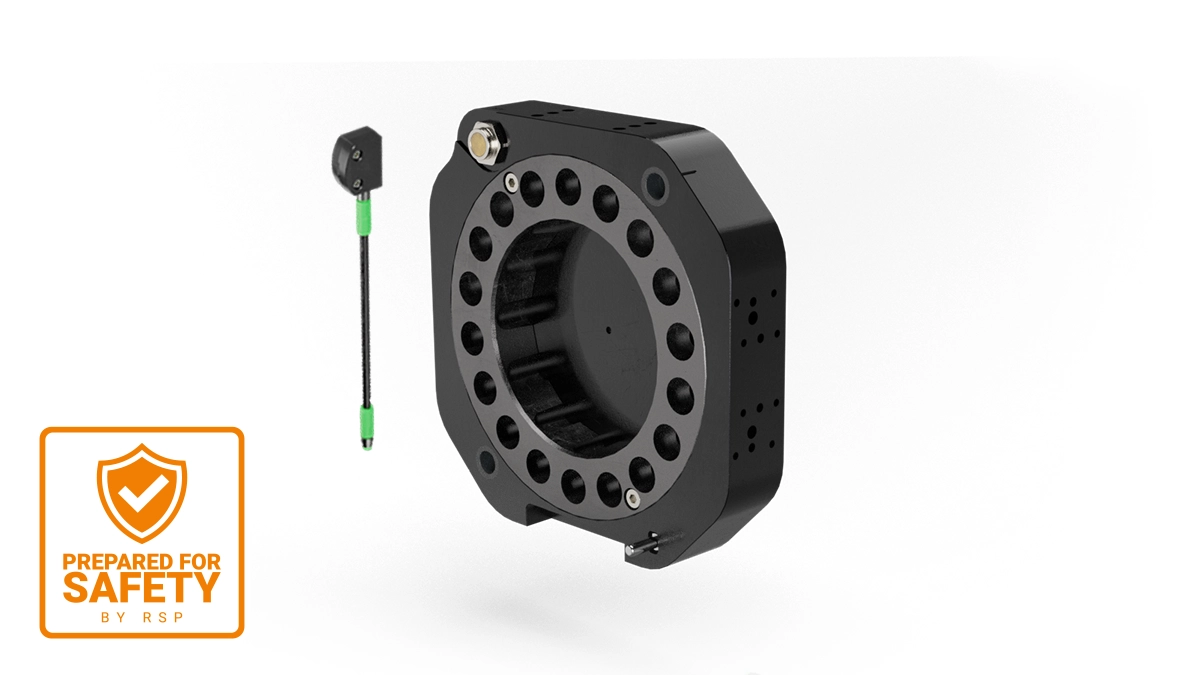

The Robot System Products “Prepared For Safety” concept includes preconfigured tool changers ready to be customized with our module for integrated safety. Please contact support@robotsystemproducts.com for more information about this.
| Mechanical interface | ISO 9409-1 200-16-M16 |
|---|---|
| Robot payload | 1000 kg | 2200 lb |
| Fz | ± 10000 N | ± 2200 lb |
| Mz | ± 10000 Nm | ± 88000 lbf·in |
| Mx/My | ± 10000 Nm | ± 88000 lbf·in |
| Weight | 10.3 kg | 22.71 lb |
| Height | 50 mm | 1.97 in |
| Air channels available to tool | 1, Additional channels can be added with external media module |
| Air connection, outlet | G 1/2″ |
| Air flow per channel | 2000 l/min | 70.6 CFM |
| Max air pressure | 10 bar | 145 psi |
| Air quality | Oil-clean and waterless filtered air, with max 25µm particle content |
| IP Class | IP 54 |
| Working temperature | +10°C – +50°C | 50 °F – 120 °F |
