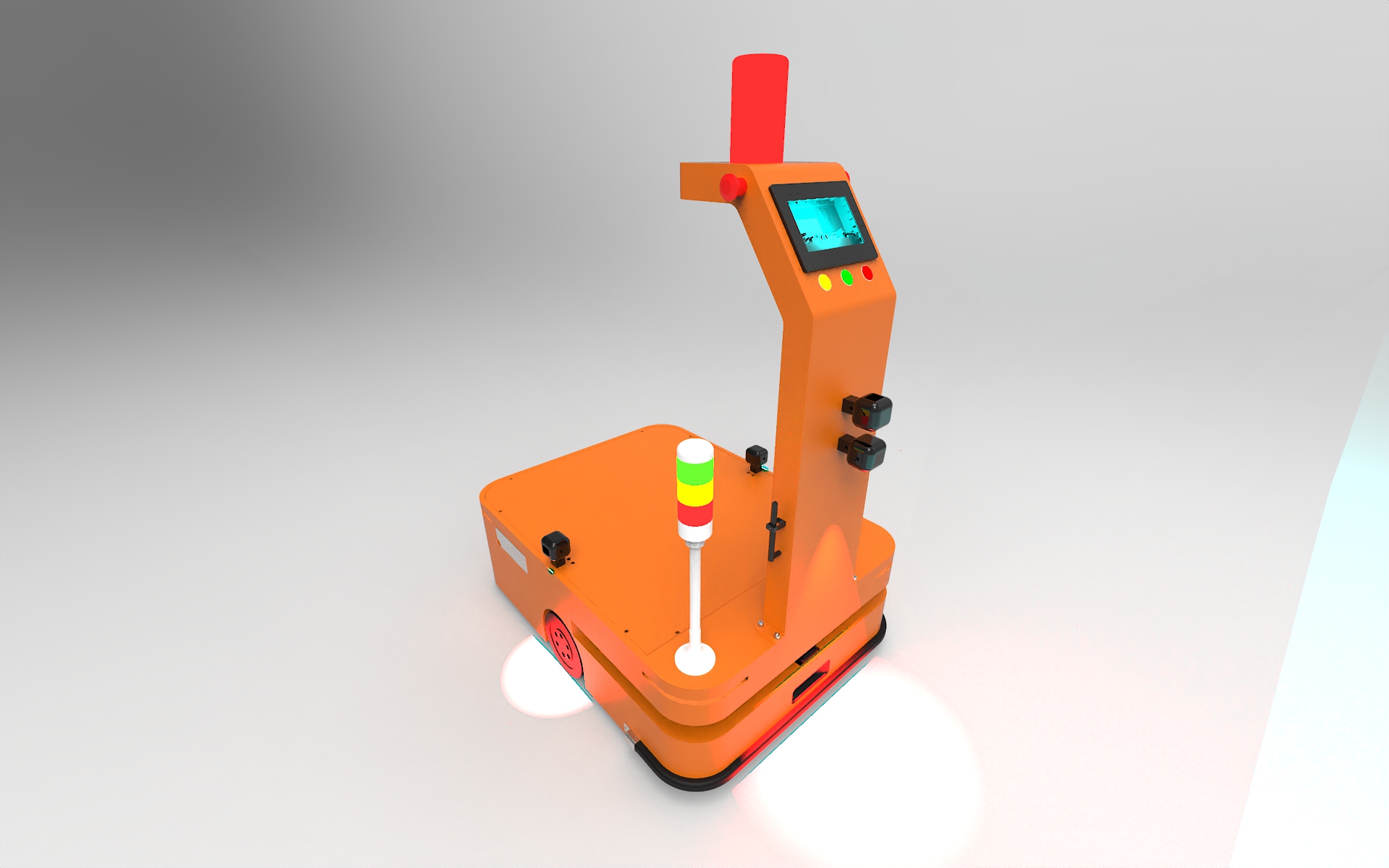

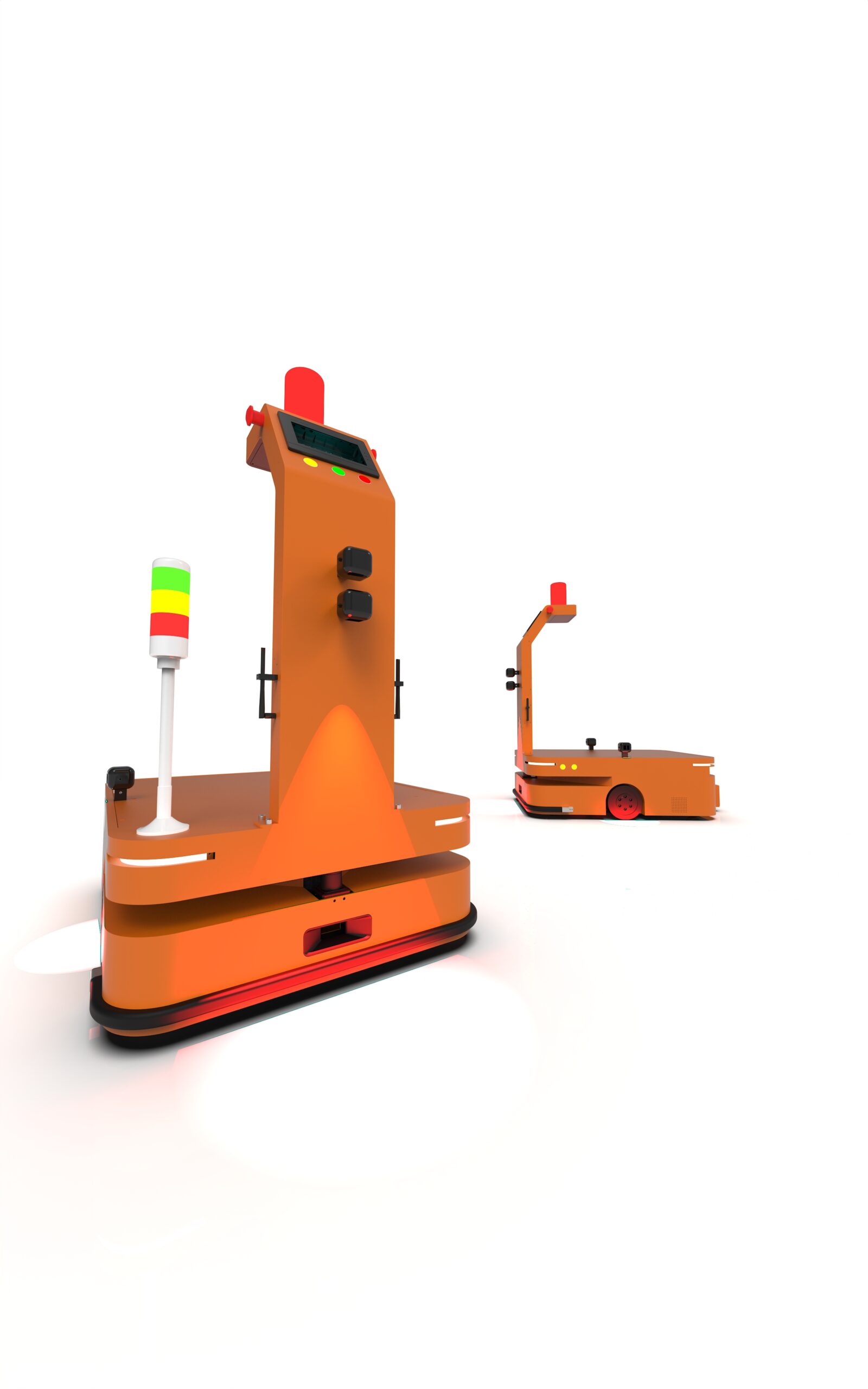

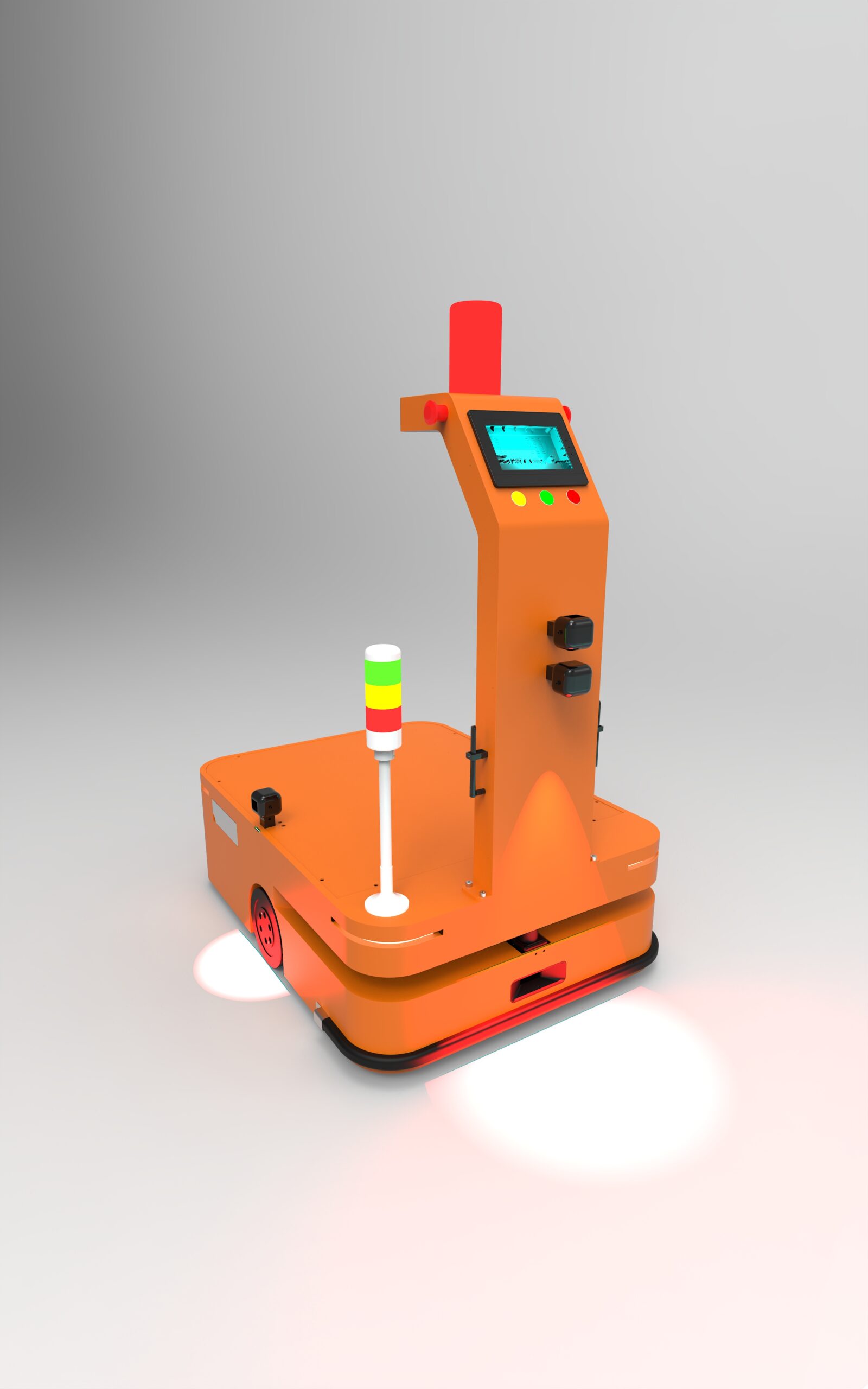

Towing Moving Robot WD500RT

Towing Moving Robot: WD500RT
Rated load: 500kg
Navigation mode: LiDAR SLAM Navigation
Positioning accuracy: ±10mm
Angle precision: ±1°
Lifting height: N/A
Endurance: 8 h
Charging time: ≤ 1.5 h
Charging mode: manual/automatic
Communication mode: WiFi/5G

Add to wishlist
Add to wishlist
หมวดหมู่: , รหัสสินค้า: WD500RT ป้ายกำกับ: แบรนด์:

คำอธิบาย

parameters Name Towing Moving Robot-WD500RT
Navigation mode LiDAR SLAM
Drive mode Double wheel differential
Dimension(L*W*H) 1205*784*1367mm

(with bumper strip)

Weight (with batteries) 260KG (±10KG)
Maximum payload 500KG
Network Ethernet / Wi-Fi 802.11 a/b/g/n/ac
Ambient temperature and humidity range Temperature : 0~50℃ / Humidity: 10~90%, No compression condensation
IP rating [1] IP20
Performance parameters Passability (slope/step/gap) [2] ≤5%/5mm/30mm
Navigation position accuracy [3] ±10mm
Navigation angle accuracy [3] ±1°
Operation speed

(Adjustable)

≤1.2m/s
Battery parameters Battery capacity 48V/40AH Lithium iron phosphate
Comprehensive battery life 8h
Comprehensive battery life ≤1.5h
Charging mode Manual/Automatic
Cycle times 1500 cycles,capacity>80%
Safety protection LiDAR SLAM number 2
Emergency stop button
Speaker
Ambient light
Bumper strip
Function Basic functions [4]
Wi-Fi roaming
Automatic charging
Shelf recognition function
QR code accurate

positioning function

Optional

[1]. Designed for indoor transport, not recommended for outdoor environments.

[2]. Road surface is smooth, clean and without significant undulations. Slope 5% = arctan(0.05) ≈ 2.8°. The robot may not stop or turn at ramps, steps, or gaps, but may only pass quickly perpendicular to them.

[3]. Navigation accuracy usually refers to the repeated accuracy of the robot navigation to the target site. When the environment scanned by the robot LiDAR is relatively stable (change rate <30%), the repeated accuracy of the robot navigation from the fixed direction to the target site can reach the expected value. When the robot runs along the virtual path, it will try to fit the path, but it does not guarantee repeatability. That is, the robot can guarantee the accuracy of the point, without guaranteeing the accuracy of the navigation path. The minimum site spacing supported by the robot is 1cm.

[4]. The basic functions include map editing, model editing, positioning and navigation, basic motion model (differential), API interface, etc.

ข้อมูลเพิ่มเติม

น้ำหนัก 260 กก.
ขนาด 1205 × 784 × 1367 เซนติเมตร
Color

Orange
